Engineering/Design

At AMPDS, we use advanced design tools and incorporate the latest technologies to produce designs in your high speed or high density or multilayer PC boards. PCB Design services include schematic design, input, and circuit layout design. From schematic capture to final routing we also provide check plots and the necessary documentation. We also offer on-site design service where one of our PCB Design Engineers can come over to your facility and work along with your design engineers. Our design engineers are equipped with all the necessary CAD tools to complete your design quickly. Our design team is capable of assisting you in the following disciplines of PCB design.

Plastic and Mechanical Design

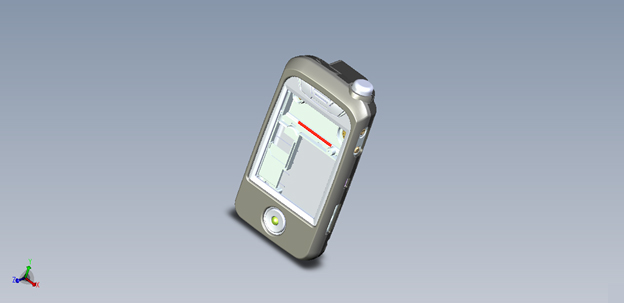

We utilize the latest 3D modeling tools to create aesthetic, ergonomic and functional designs for our customers. A sampling of our recent designs is shown below.

Sampling of our Areas of Expertise

  • 8 bit uC including:
    • Atmel AVR series Micro Controllers
    • Texas Instruments MSP430 Micro Controllers
    • Microchip PIC
  • PID control systems (Proportional, Integral, Derivative)
  • Temperature sensors
  • Infrared sensors
  • Servo control
  • Data Aquisition, Digital and Analog
  • National Instruments
  • Motor controllers
  • LED lighting
  • Pulsed Laser controllers and power supplies
  • Data Communication
    • I2C
    • SPI
    • USB
    • Bluetooth
    • RS232,RS485,RS422
    • Ethernet
    • Wireless (802.15.4 and proprietary)
    • BACnet
    • MODBus
  • Mobile Computing
    • Windows Mobile Compact Framework
    • Android
    • J2ME
  • .NET C# development

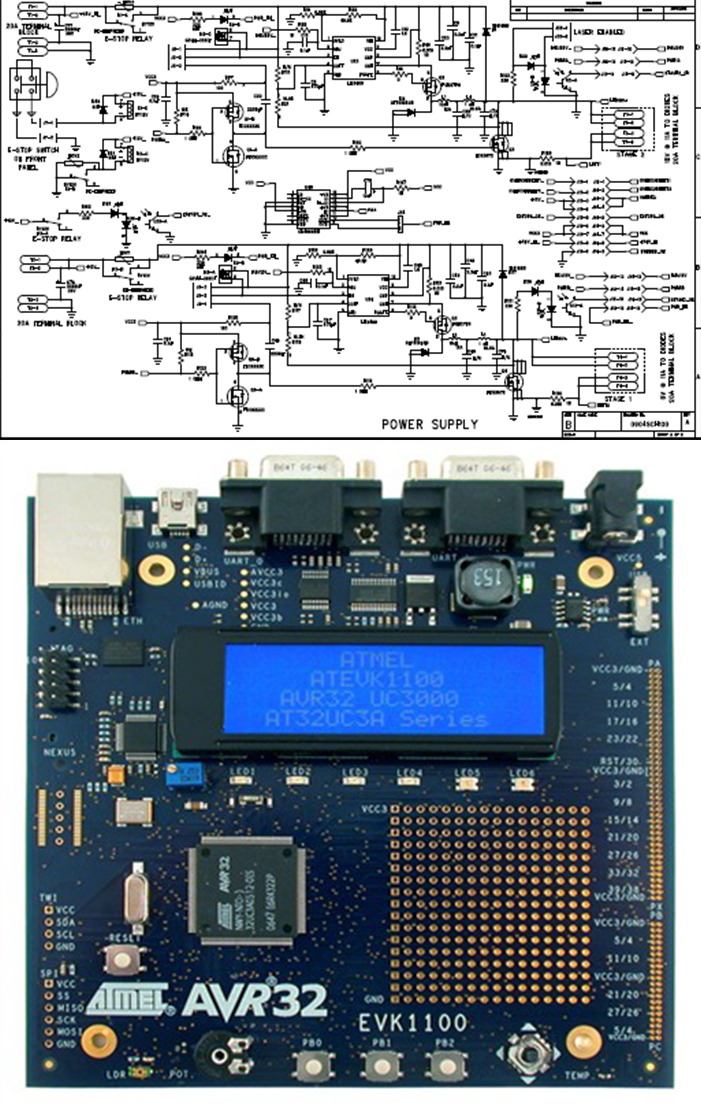

Hardware Designs

AMPDS designers and engineers have more than 50 years of combined experience in electronics component and product design. We have developed a reputation for producing innovative and effective solutions for our customers. Our designs have proved to be reliable, flexible and operate in the most challenging environments. All our designs are built on a foundation of proven and working concepts, with a touch of innovation that only comes from years of experience, thorough understanding of available technologies and passion for the work.

Design and Production: Every design we undertake receives the same attention to detail we give to all projects. Each project undergoes an analysis and research stage, and then a design specification document is written. Schematics for the application are drawn, a printed circuit board design is created, and the subassemblies are laid out and tested. Final documentation is provided that explains every module in detail.
We welcome any opportunity in providing solutions and working with your engineering and production team.

AMPDS can make anything you have in mind to
make it as a finished product and deliver to your customer.
